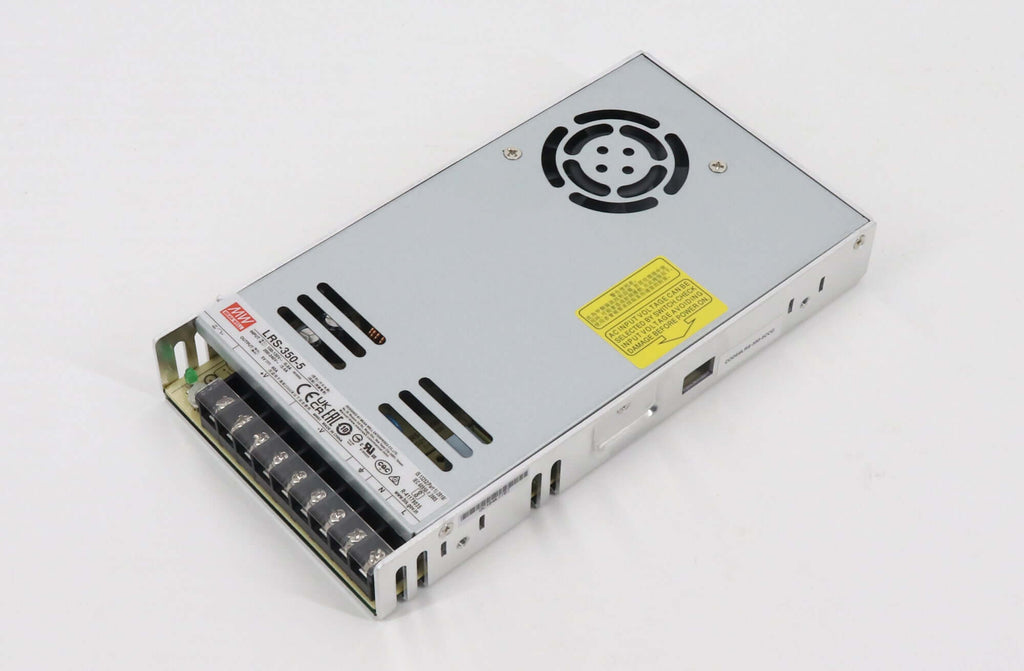

Meanwell LRS-350-5 5V60A 300W LED Power Supply

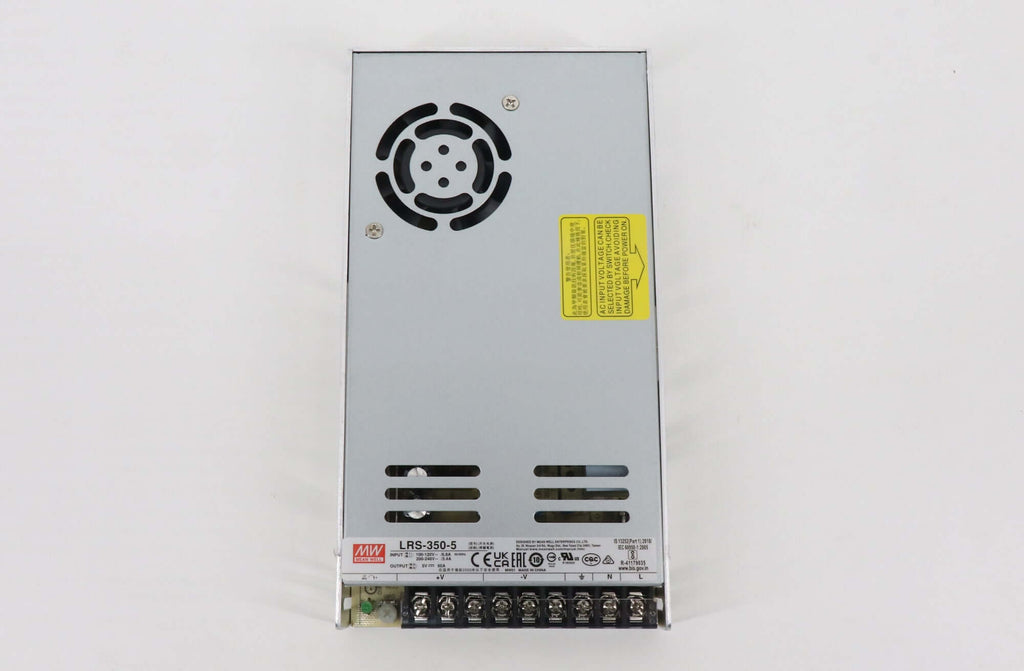

Meanwell LRS-350-5 5V60A 300W LED Power Supply - Image 2

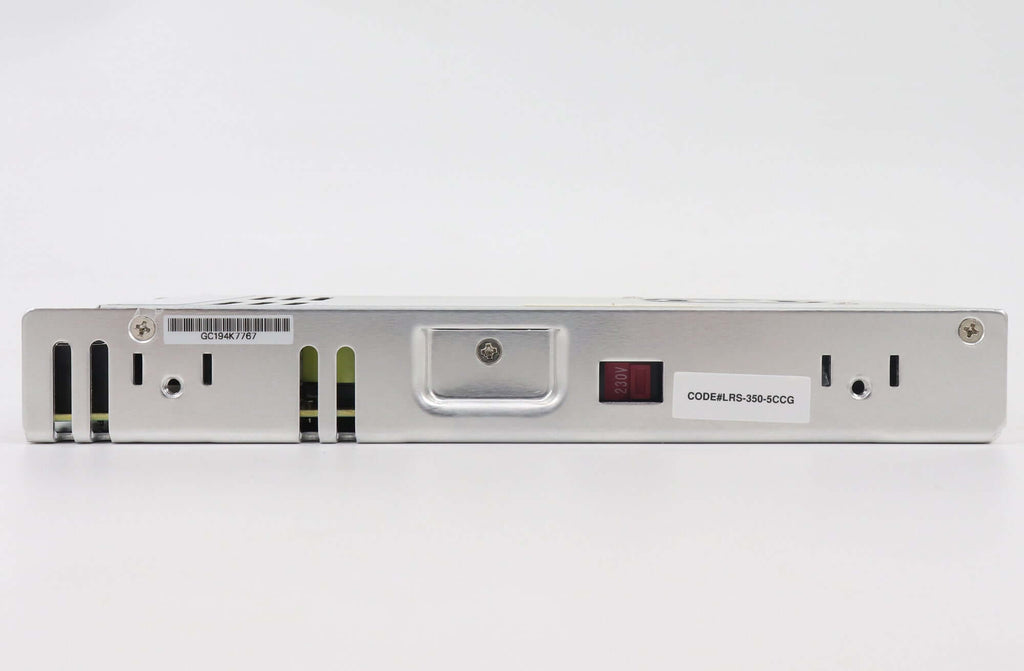

Meanwell LRS-350-5 5V60A 300W LED Power Supply - Image 3

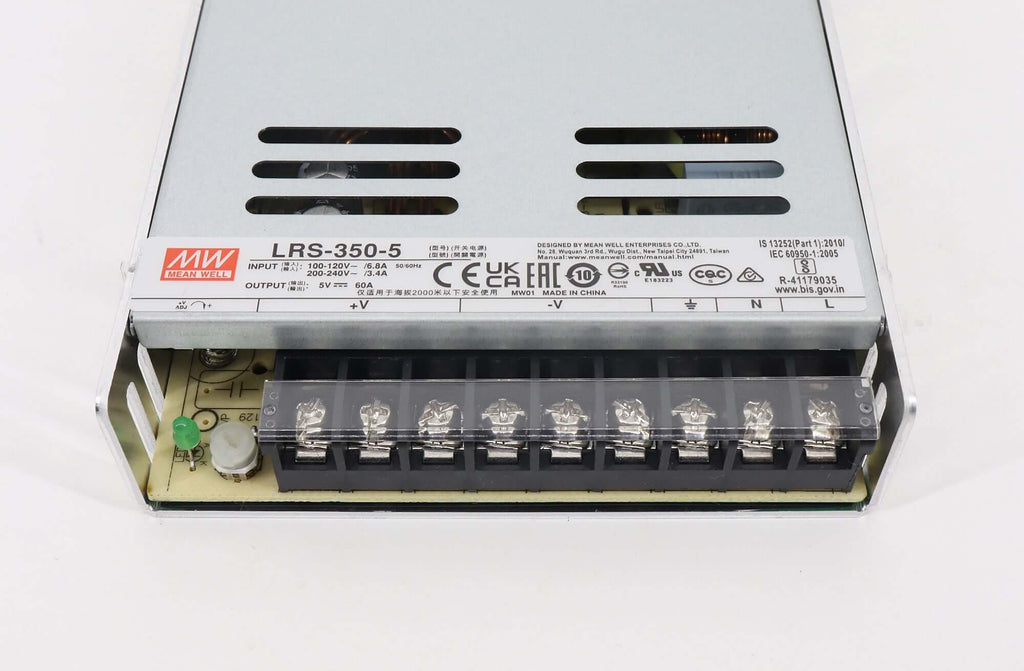

Meanwell LRS-350-5 5V60A 300W LED Power Supply - Image 4
Meanwell LRS-350-5 5V60A 300W LED Power Supply - Image 5

Meanwell LRS-350-5 5V60A 300W LED Power Supply

Category:

$25.00

Meanwell LRS-350-5 5V60A 300W LED Power Supply Features:

5V  60A 300W
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC Fan with fan speed control function
1U low profile 30mm
LED indicator for power on
2 years warranty
UL  passed
Case:806 Size:215×115×30mm
AC input voltage range———88-132VAC/ 176-264VAC selected by switch
Input frequency———————————47-63Hz
AC inrush current——————————–Cold start，40A/230VAC
DC adjustment range—————————–±10% rated output voltage
Line regulation（full load）————————≤0.5%
Output over load protection——-110%-150% hiccup mode，auto-recovery
Rise，hold up time——————–50mS，20mS at full load（typical）
Withstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature—– -10~+40℃@100%，+60℃@60% load
Storage temperature—– -20℃~+85℃，20%~95%RH(non condensing)
Safety standards——Design refer to GB4943，UL60950-1,EN60950-1
EMC standards——- Design refer to GB9254，EN55022 class A
Cooling method———————Forced air cooing by built-in DC fan



More Pictures of Meanwell LRS-350-5 5V60A 300W LED Power Supply:

Meanwell LRS-350-5 5V60A 300W LED Power Supply
Meanwell LRS-350-5 5V60A 300W LED Power Supply
Meanwell LRS-350-5 5V60A 300W LED Power Supply
Meanwell LRS-350-5 5V60A 300W LED Power Supply

Download Specification：
Meanwell LRS-350-5 5V60A 300W LED Power Supply Specification
