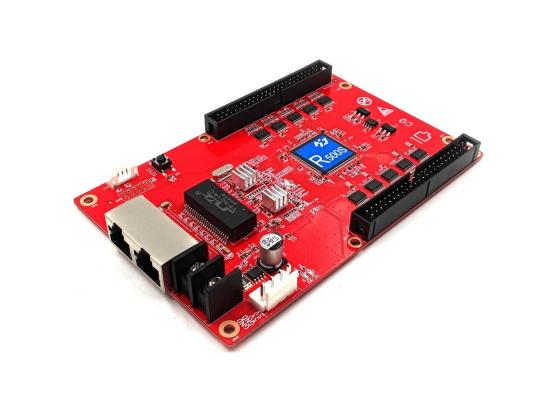

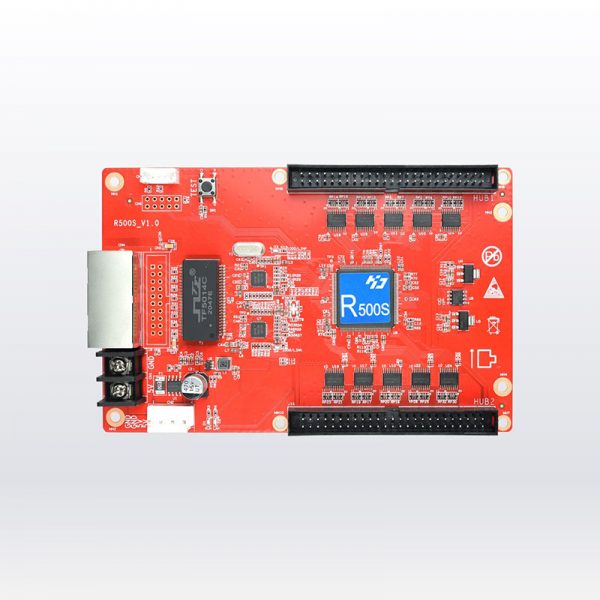

Huidu HD-R500 Asynchronous Full Color Cascading Receiver Card Introduction:
1) receiving the control computer via Gigabit Ethernet data cable, without having to send the card;
2) Dual Ethernet ports automatically recognize input and output.
Huidu HD-R500 Asynchronous Full Color Cascading Receiver Card Specification:
|
With sending
|
Dual-mode sending box ，Asynchronous sending card,
|
|
card
|
Synchronous sending card, Video processor of VP series.
|
|
Module type
|
Compatible with all common IC module, supported most PWM IC module.
|
|
Scan mode
|
method from static to 1/64 scan
|
|
Communication
method
|
Gigabit Ethernet
|
|
Control range
|
Recommend：65,536 pixels (128*512)
Outdoor module width ≤256, Indoor module width ≤128
|
|
Multi-card
connection
|
Receiving card can be put in any sequence
|
|
Gray scale
|
256~65536
|
|
Smart setting
|
A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board.
|
|
Test functions
|
Receiving card integrated screen test function, Test display brightness uniformity and display module flatness.
|
|
Communication
distance
|
Super Cat5,Cat6 network cable within 80 meters
|
|
Port
|
5V DC Power*1,1Gbps Ethernet port*2, 50 PIN HUB*2
|
|
Input voltage
|
4.2V-5.5V
|
|
Power
|
5W
|
Further Information:
HD-R500S Specification V1.0
